Having trouble aligning your triple monitor setup properly? The Advanced VESA (Set of 3) will definitely solve that problem in no time!
Our product designers have developed an adjustable VESA adapter that will save you time during the installation of your triple monitor configuration and will make everything align and fit perfectly in just a few minutes
As opposed to what you can find in the market today, our Advanced VESA allows for a complete monitor position lock. This means that once you are fully satisfied with the configuration, your monitors can be locked and secured in position. Rather than an adapter that is moving freely at all times, we designed the product with a locking mechanism so that no movement, vibration or accidental bump will ever move your screens out of place.
WHAT'S INCLUDED
Box 1 - 8" x 6" x 6"
3 x Advanced VESA plate 1
3 x Advanced VESA plate 2
3 x Advanced VESA plate 3
6 x 50mm set screws
6 x 30mm set screws
6 x 1/4" screws
6 x M8 Screws (12mm)
6 x M8 Screws (16mm)
6 x M8 T-Nuts
SPECIFICATIONS
Compatible with all of our aluminum profile triple monitor stands
Attachment provided: VESA 100mm/75mm
Adjustment possibilities
Move up or down on the vertical Z-axis (Heave) : +/- 0.5" for a total range of 1"
Slide forward or backward on the horizontal X-axis (Surge) : +/- 0.5" for a total range of 1"
Move left or right on the horizontal Y-axis (Sway) : Can be done by adjusting the horizontal position of the supporting T-Nut that secures the Advanced VESA inside the aluminum profile channel on your monitor stand
Tilt clockwise or counterclockwise (Roll) : +/- 7.5° for a total range of 15¬∞
Tilt forward or backward (Pitch) : +/- 15° for a total range of 30°

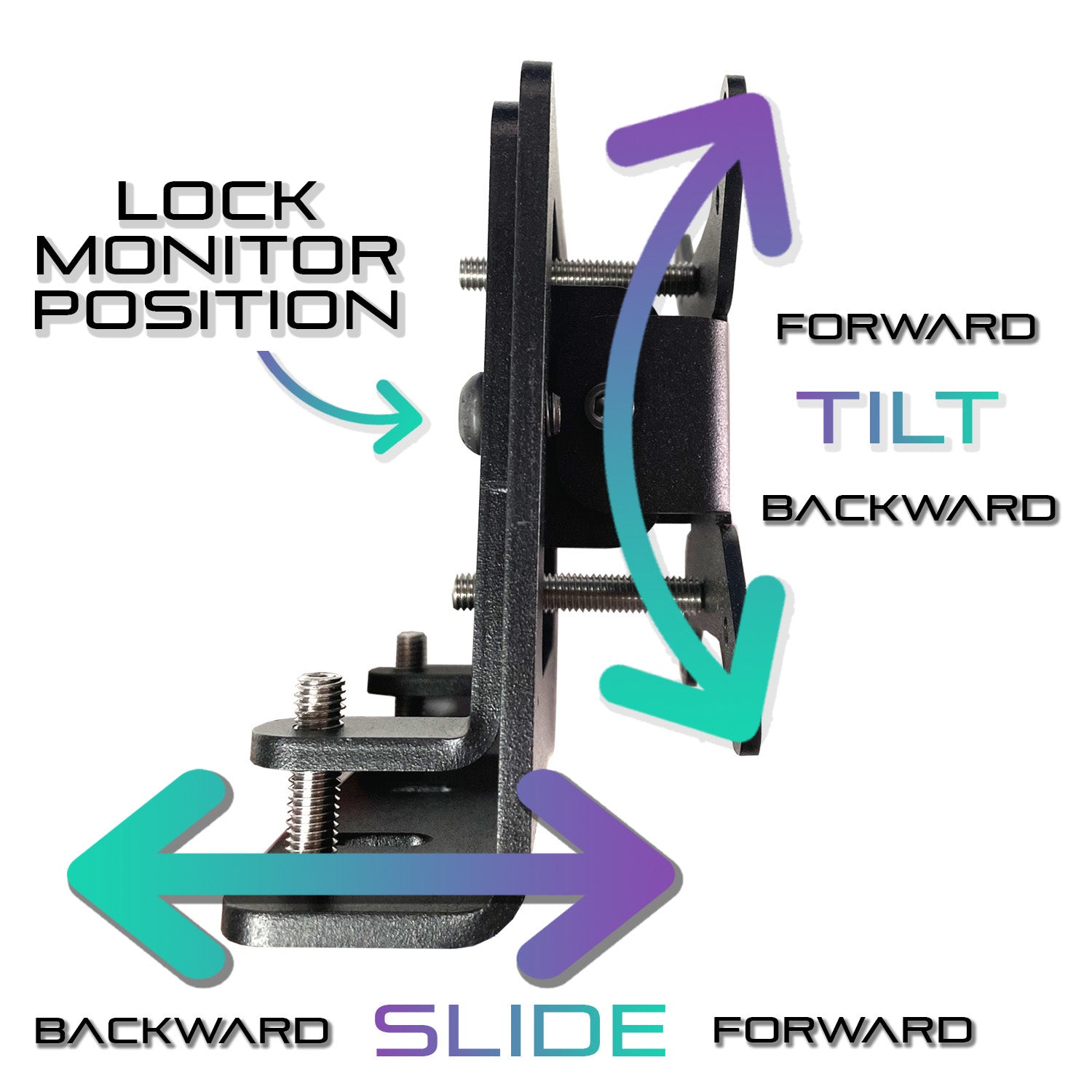

Refer to the images provided in this product page for a visual representation of the adjustment possibilities
SHIPPING
ProSim West serves the local Alberta community and does not ship out of province. Orders under $1000 are available for free pickup in SW Calgary, or can be shipped for a fee. Orders over $1000 can be delivered immediately for free in the Calgary area, picked up in our SW location, or shipping can be arranged for a fee. ProSim West will reach out within 12 hour of receiving an order to arrange delivery, pickup, or shipping.
WARRANTY
Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact info@advancedsimracing.com for information or claims in regards to this lifetime warranty.
Warranty coverage limitations:
Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use
Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product
Damage resulting from misuse, abuse, negligence, accidents or shipping damage
Any esthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product
Normal and expected wear and tear
Damages incurred during transportation by our shipping partners or by the customers upon reception of the product
