ASR 4

DESCRIPTION

• The ASR 4 is our high-end SimRacing chassis with a 4.5" aluminum base and reinforced steering column.
• Its 4.5" aluminum base will give you more height and stability, ensuring optimal performance from the most powerful SimRacing peripherals.
• Zero flex and no weak points design philosophy.
• The ASR 4 is readily available in Matte Black (Powder Coat) and two of our exclusive powder coat colors, Carbon Grey & Infinite Black. Our proprietary powder coat formula is designed for extra durability, enhanced scratch protection and of course, the pristine look that will transform your simulator into a head-turning centerpiece.
• Made from top-grade alloy Aluminum sourced in the United States of America
• Produced and packaged in Canada with the utmost care and attention.
• The extruded aluminum design will let you adjust and configure your simulator in multiple ways, ensuring that you will be comfortable for short and long SimRacing session.
• The included pedal plate is fully adjustable in height, angle, and mounting position on the chassis to help you achieve a comfortable position.
• Highly adjustable wheel deck that gives you the opportunity to create your own customized and optimal racing position.
• Chassis size and format is adequate for most builds and heights (Up to 6'6" or 1.98m).
• Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)
• Four Wheel Deck options available :
• Standard Wheel Deck (Entry level and mid-range products from manufacturers such as Thrustmaster, Fanatec and Logitech)

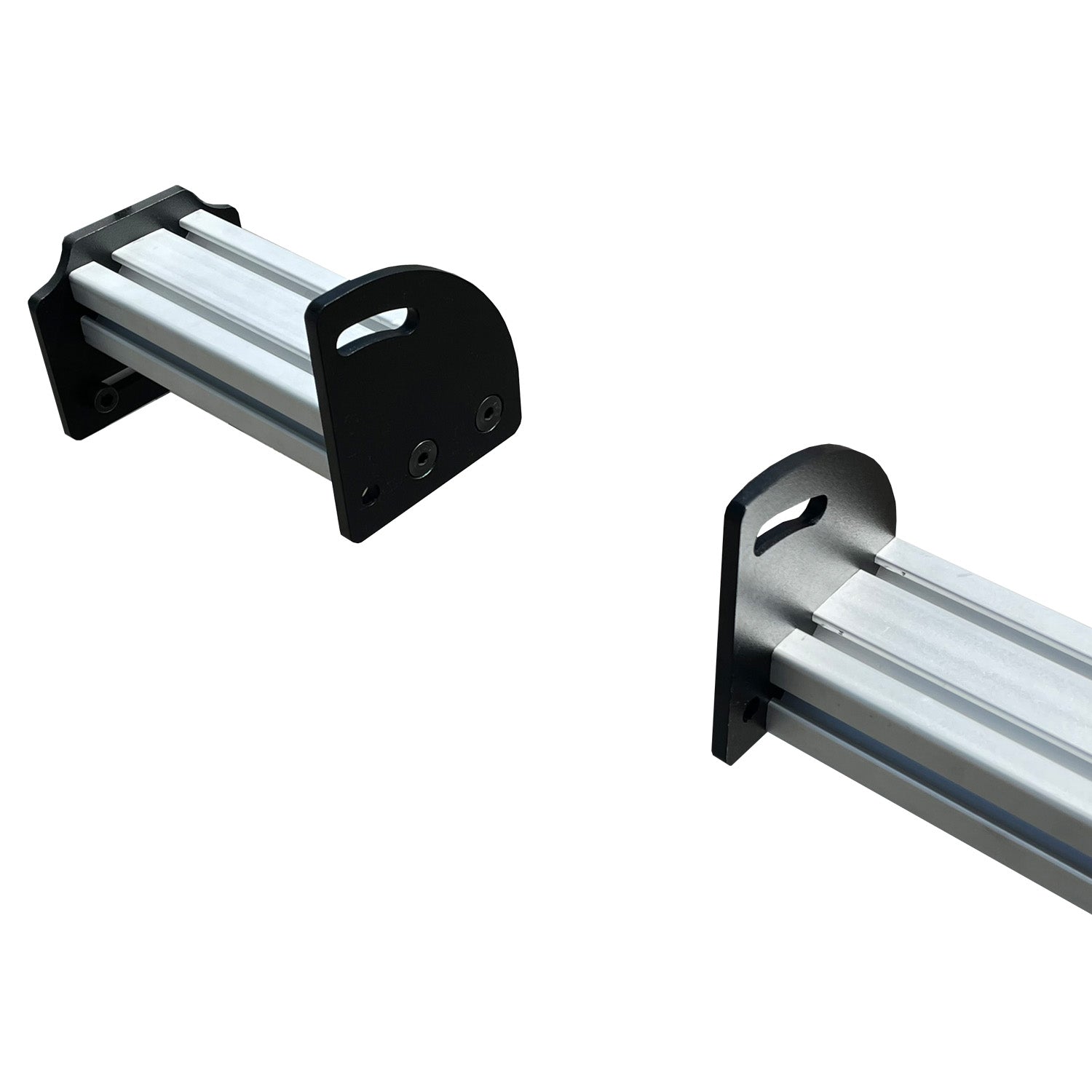

• Podium DD Side Mount (Fanatec Podium DD1/DD2 Series)
• CSL DD Pro Side Mount (Fanatec CSL DD & GT DD Pro)
• Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)
• Two Pedal Tray options available
• Steel Pedal Plate
• Aluminum Pedal Deck & Heel Rest

SPECIFICATIONS

• Base composition : 4.5" x 1.5"
• Steering column composition : 4.5" x 1.5"
• Base length : 50"
• Base width : 22"
• Chassis height from rubber feet to tip of the steering column : 29"
• Weight when assembled (w/o accessories): 116lbs.

WHAT'S INCLUDED?

• Box 1 (Aluminum) 50" x 5" x 5"
• 1 x Aluminum profile 50" x 4.5" x 1.5"
• 1 x Aluminum profile 28" x 4.5" x 1.5"
• 1 x Aluminum profile 19" x 3" x 1.5"
• Front plate with Advanced SimRacing crest

• Box 2 (Aluminum) 50" x 5" x 5"
• 1 x Aluminum profile 50" x 4.5" x 1.5"
• 1 x Aluminum profile 28" x 4.5" x 1.5"
• 1 x Aluminum profile 19" x 3" x 1.5"

• Box 3 (Aluminum) 22" x 5" x 3"
• 2 x Aluminum profile 22" x 1.5" x 1.5"
• 1 x Aluminum profile 16" x 1.5" x 1.5"
• 1 x Aluminum profile 19" x 3" x 1.5"

• Box 4 (Hardware) 10" x 8" x 4"
• 16 x Corner Gussets and Plastic Caps
• 44 x M8 Screws (16mm)
• 10 x M8 Screws (20mm)
• 4 x M8 Screws (12mm)
• 10 x M8 Flathead Screws (20mm)
• 4 x 5/16" Screws for filted ends (16mm)
• 68 x M8 T-Nuts
• 2 x Side mounting plate (6" x 4.5")
• 1 x Side mounting plate (4.5" x 1.5")
• Endcaps

• 4 x 4.5" Endcaps
• 5 x 1.5" Endcaps
• 1 x 3" Endcaps
• 20 x Pushpins
• 4 x Rubber feet
• 4 x M6 Screws (20mm)
• 4 x M6 T-Tuts

• Box 5 (Wheel Deck selection) 13" x 10" x 3"
• Depending on your selection : Standard Wheel Deck or Podium DD Side Mount or Podium DD Side Mount and Front Mount or CSL DD Side Mount
• 8 x Flathead socket cap screws (16mm)
• 8 x M8 T-Nuts
• 2 x Aluminum profile 7.5" x 3" x 1.5"

• Box 6 (Pedal Support) Depending on your selection
• Steel Pedal Plate - 19" x 16" x 4"
• 1 x 3/16" Steel Pedal Plate
• Aluminum Pedal Deck & Heel Rest - 20" x 9" x 6"
• 2 x Aluminum profile 18.5" x 3" x 1.5"
• 2 x 1/4" Side Steel Plates
• 1 x 1/8" Steel Heel Rest
• 12 x M8 Socket Cap Screws (16mm)
• 4 x M8 Screws (12mm)
• 8 x M8 T-Nuts
• Adjustable Legs & Rubber Feet (Set of 4)
• 4 x Steel plates
• 4 x Rubber feet (2" in diameter) on M8 rods
• 8 x M8 Screws
• 8 x M8 T-Nuts

COMPATIBILITY

• Standard Wheel Deck
• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10

• AccuForce Pro V2 Steering System
• Moza products
• Podium DD Side Mount
• Fanatec Podium Wheel Base DD1 & DD2
• CSL DD Pro Side Mount
• Fanatec CSL DD
• GT DD Pro
• Front Mount
• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases
• Steel Pedal Plate
• Asetek SimSports Invicta & Forte Sim Racing Pedals
• Heusinkveld
• Sim Pedals Sprint
• Sim Pedals Ultimate
• Sim Pedals Ultimate+
• Thrustmaster products
• Fanatec
• ClubSport V3
• CSL
• CSL Elite
• Not compatible with the CSR Pedals
• Logitech products
• Simtrecs ProPedal GT
• And much more (please inquire for specific pedal sets)
• Aluminum Pedal Deck & Heel Rest
• Heusinkveld
• Sim Pedals Sprint
• Sim Pedals Ultimate
• Sim Pedals Ultimate+
• MECA Cup1
• Simtrecs ProPedal GT
• Sim Coaches P1-2/3 Pro Hydraulic Pedals
• Simforge Engineering Mark-1
• RaceWerks S1 PRO
• Simworks PRO GT V3.1 LC Pedal Set
• VRS Pedals
• VNM Pedals
• HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required)
• And many more (please inquire directly with us for specific pedal sets)
• The Fanatec Clubsport V3's and Logitech pedals are NOT compatible with the Aluminum Pedal Deck upgrade

ASSEMBLY GUIDE

The ASR 4 assembly guide is available right here.

More assembly guides available on our dedicated page.

SHIPPING

ProSim West serves the local Alberta community and does not ship out of province.  Orders under $1000 are available for free pickup in SW Calgary,  or can be shipped for a fee.   Orders over $1000 can be delivered immediately for free in the Calgary area, picked up in our SW location, or shipping can be arranged for a fee.   ProSim West will reach out within 12 hour of receiving an order to arrange delivery, pickup, or shipping.

WARRANTY

Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact info@advancedsimracing.com for information or claims in regards to this lifetime warranty.

Warranty coverage limitations:

• Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use
• Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product
• Damage resulting from misuse, abuse, negligence, accidents or shipping damage
• Any esthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product
• Normal and expected wear and tear
• Damages incurred during transportation by our shipping partners or by the customers upon reception of the product
• Dissatisfaction due to buyer's remorse.
