Button Box Mount

DESCRIPTION

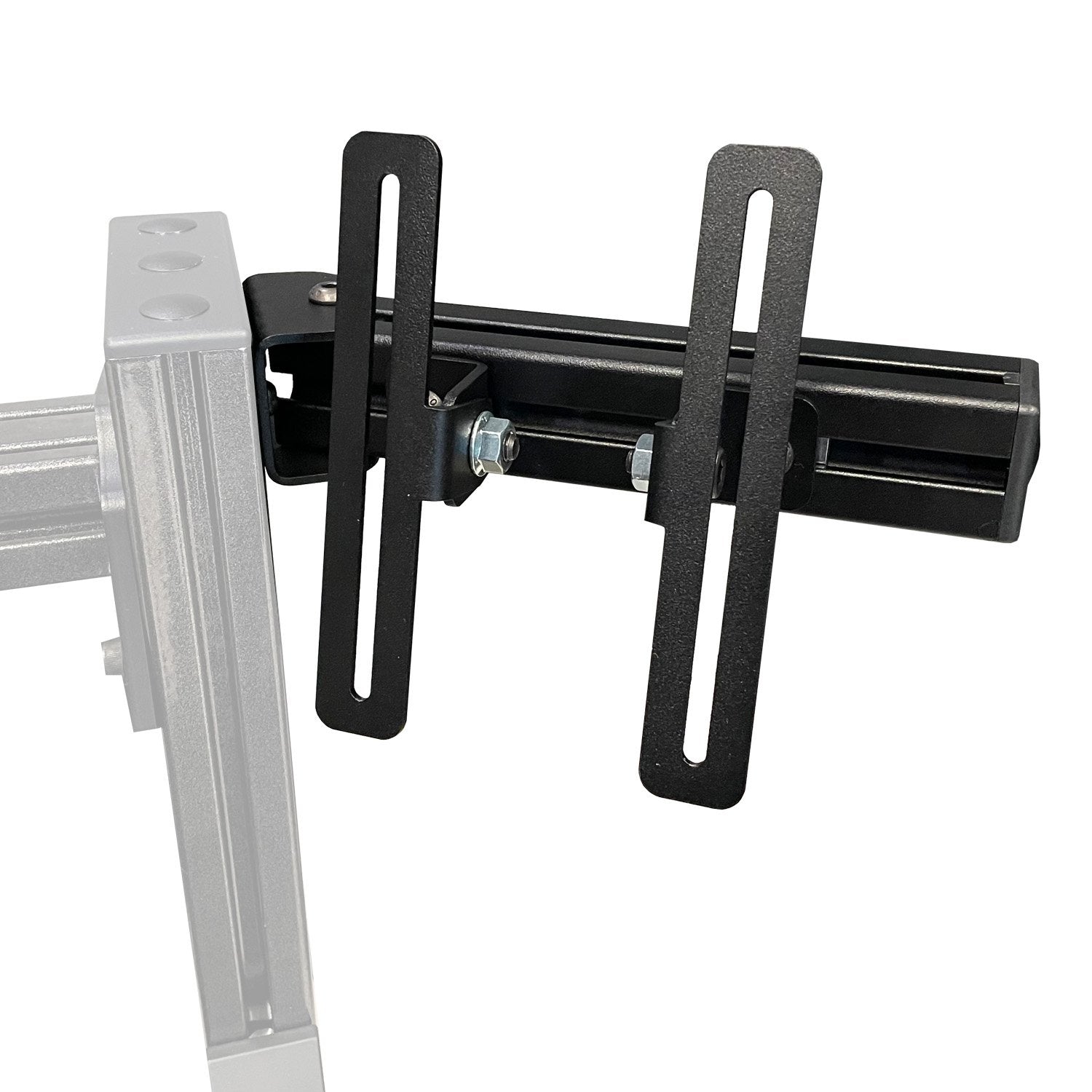

• Our Button Box Mount is designed to be completely universal in terms of compatibility and mounting solutions, thanks to its dual sliding Universal Mounting Brackets.
• With the possibility to swivel and tilt, it will allow you to position your Button Box on your simulator in any position that you would require to replicate the interior of a real race car.
• It is made in Canada from the same quality hardware and pieces that we use for all of our products.

SPECIFICATIONS

• Maximum gap between both Universal Mounting Brackets : 8"
• Universal Mounting Brackets vertical size : 5"
• Maximum mounting pattern that can be achieved : 8" x 5"

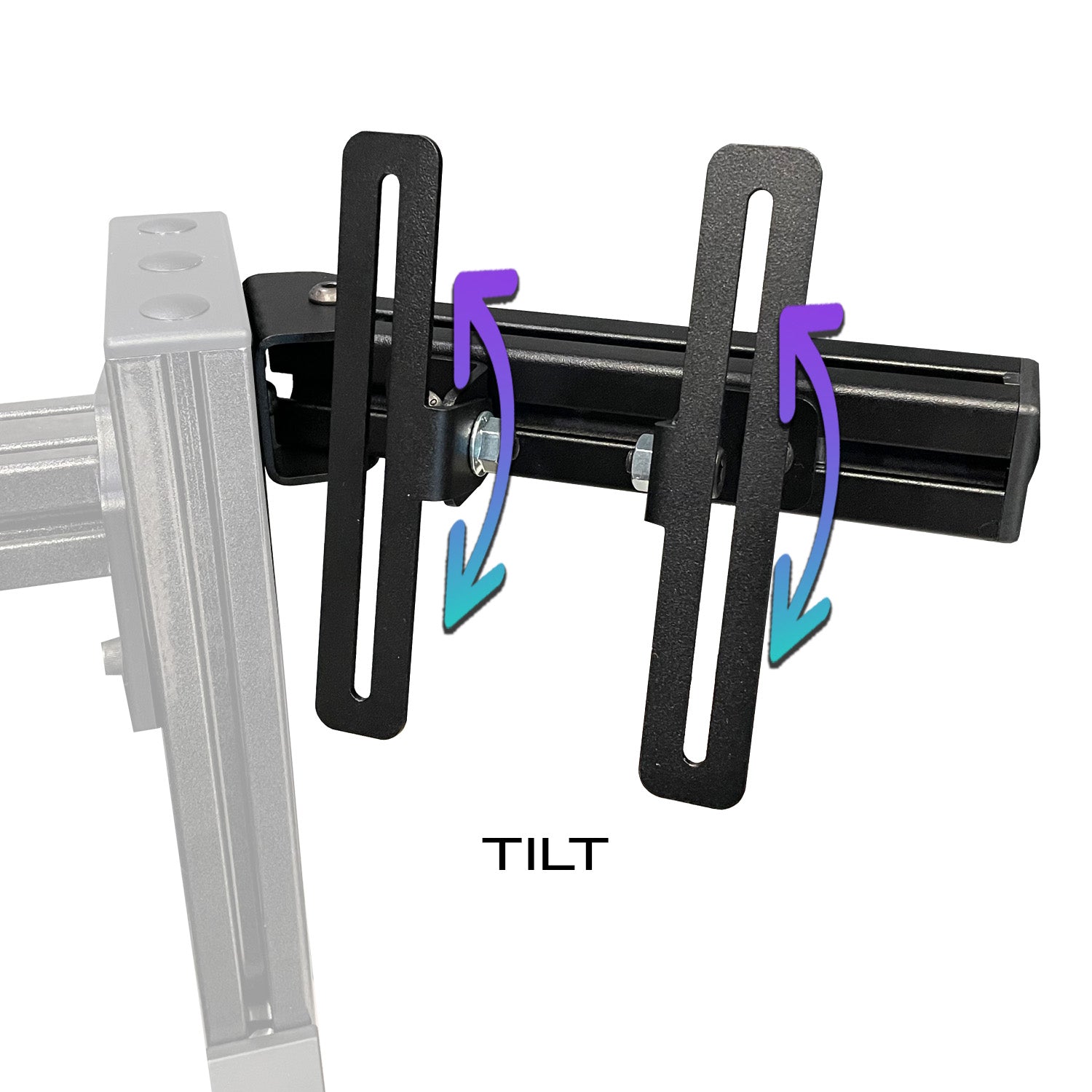

• Universal Mounting Brackets tilt angle range : 90 degrees up or down

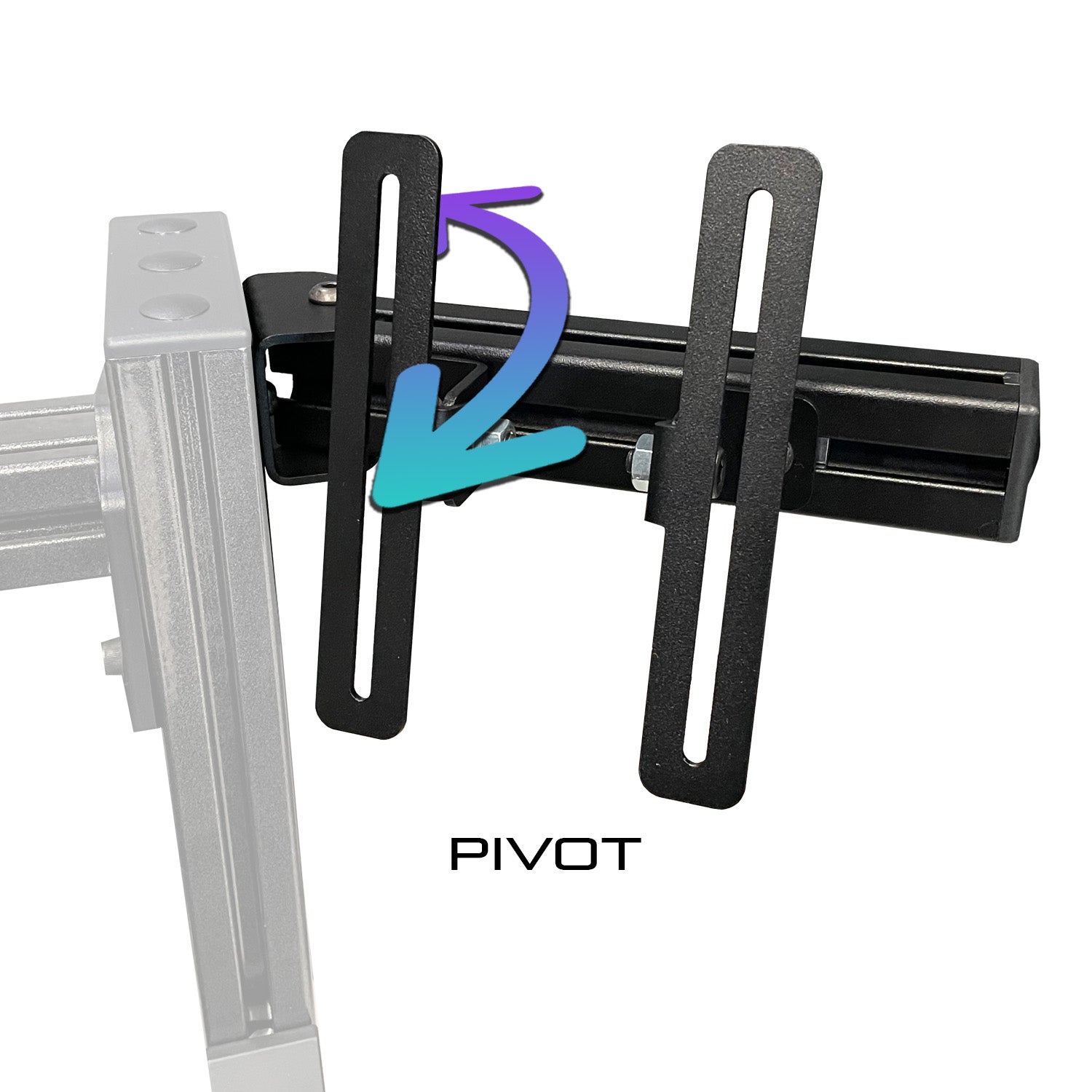

• Pivot angle range for the aluminum support beam : 180"
• The Universal Mounting Brackets support either M4 or M6 screws
• Mountable on any aluminum profile part of your Advanced SimRacing chassis

WHAT'S INCLUDED?

• Box 1 (Button Box Mount) 9" x 6" x 2"
• 1 x Aluminum profile 8" x 1.5" x 1.5"
• 1 x 3/32" Steel U-Bracket
• 2 x 1/8" Steel L-Bracket
• 2 x Universal Mounting Brackets
• 2 x M6 Screws (12mm)
• 2 x M6 T-Nuts
• 4 x M8 Button Head Screws (12mm)
• 2 x M8 T-Nuts

COMPATIBILITY

• All Button Box with fixing points on the back

ASSEMBLY GUIDE

Coming soon!

More assembly guides available on our dedicated page.

SHIPPING

ProSim West serves the local Alberta community and does not ship out of province.  Orders under $1000 are available for free pickup in SW Calgary,  or can be shipped for a fee.   Orders over $1000 can be delivered immediately for free in the Calgary area, picked up in our SW location, or shipping can be arranged for a fee.   ProSim West will reach out within 12 hour of receiving an order to arrange delivery, pickup, or shipping.

WARRANTY

Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact info@advancedsimracing.com for information or claims in regards to this lifetime warranty.

Warranty coverage limitations:

• Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use
• Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product
• Damage resulting from misuse, abuse, negligence, accidents or shipping damage
• Any esthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product
• Normal and expected wear and tear
• Damages incurred during transportation by our shipping partners or by the customers upon reception of the product
• Dissatisfaction due to buyer's remorse.
